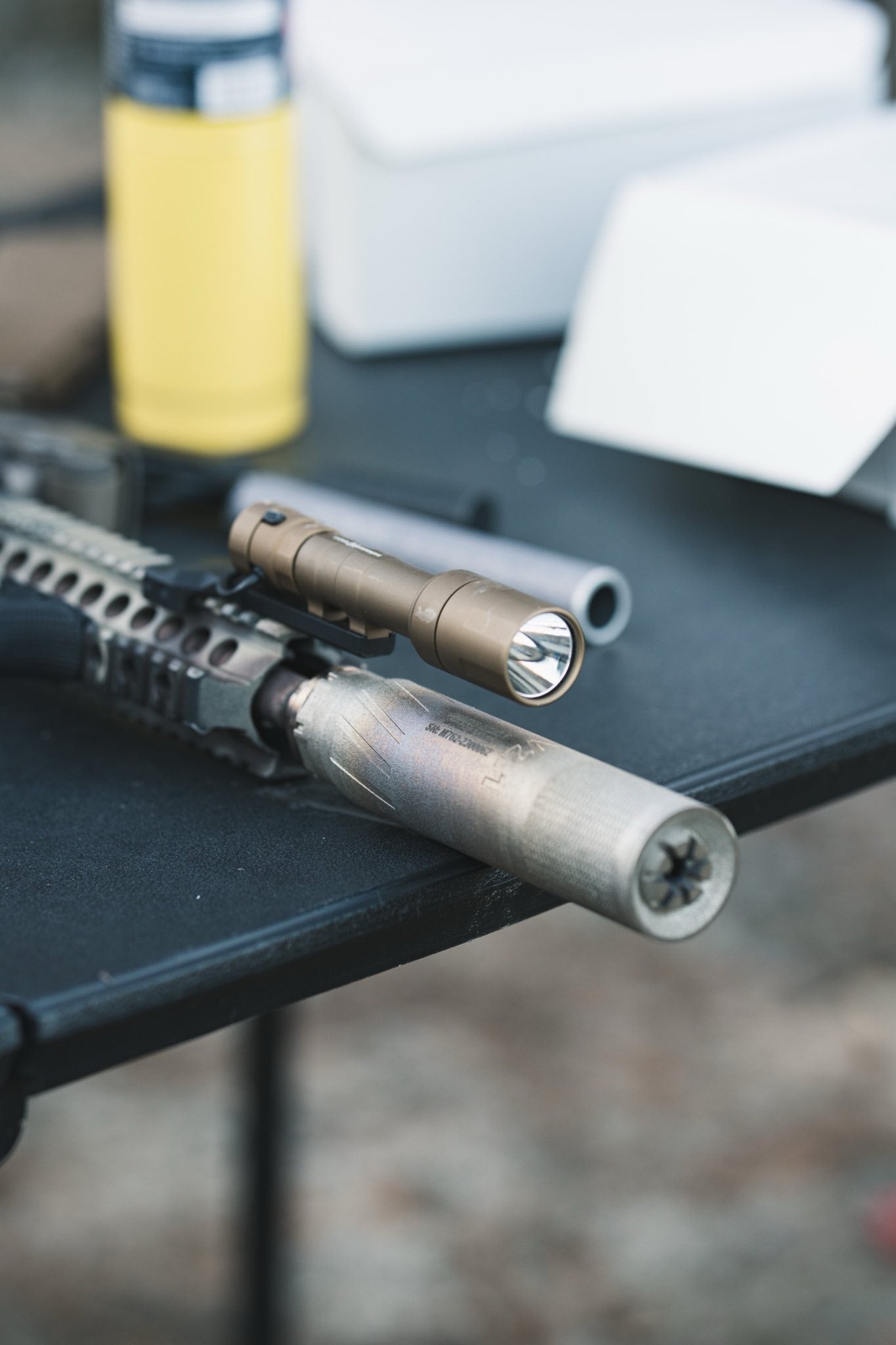

FOR Systems Monarch 7.62 V2 718 - Preorder

(The production version will NOT have "v2.2" printed in the side, these are internal test samples. Production will match the exterior otherwise.)

This is a pre-order. Units are printing right now and should be ready to go to dealers within 2-3 weeks max.

Specs:

• Material:  Inconel 718
• Method of Manufacturing: DMLS
• Weight: 20.9 oz
• Length: 7″ (without a mount)
• Diameter: 1.75″
• Bore: .30 cal
• Finish: Black C Series Cerakote

• Barrel length restrictions: 7.5” 5.56 & similar cartridges, 5.5” supersonic .300blk, 10.5” .308 and similar cartridges, 16” .300 win Mag and larger magnum .30cals
• Full Auto Rating: Be Conservative and allow for cool down time every 270 rounds. Belt Fed rating will be tested in the future


Design Highlights:

• “PFM” Baffle Technology (Preferential Flow Management) is incredibly efficient in both flow regimes while maintaining minimal back pressure

• Incredible flash suppression for a high flow rate design

• 718 Inconel allows for heavy abuse and firing schedule
• DMLS manufacturing method allows for design elements not seen in other technologies
• Maintains suppression efficiency even on smaller calibers like 5.56
• Integral DMLS printed flash hider tine end cap
• Knurling design helps with removal/tightening of suppressor by hand
• Wrench flats (1.5″) to help with install or removal of mounting system
• 1.375×24 HUB threads allows user to run mounting system of their choice
• Intended cartridges: .300 BLK, 7.62x39mm, .308 win, 5.56. (.30 cal and smaller)

MONARCH 7.62 USERS MANUAL (Included in the box as well)

Mounts: All 1.375×24 RH TPI Mounts will work. Distance from shoulder to blast baffle is 1.59”. Please check mount and can with an alignment rod while mounted to an empty/unloaded rifle. B&T Surefire adapters will not fit the blast chamber of the V2.

Cleaning: We recommend the Monarch 7.62 be cleaned in an ultrasonic cleaner with a Cerakote safe solution every 5000-10,000 rounds or when you feel performance has been reduced. We can do this for a flat fee. See website.

Warranty: If it is our fault, we will take care of you at no expense. If it is your fault, it will be on a case by case basis and up to our discretion. If it is due to gross negligence you will be covering the cost of the repair.
